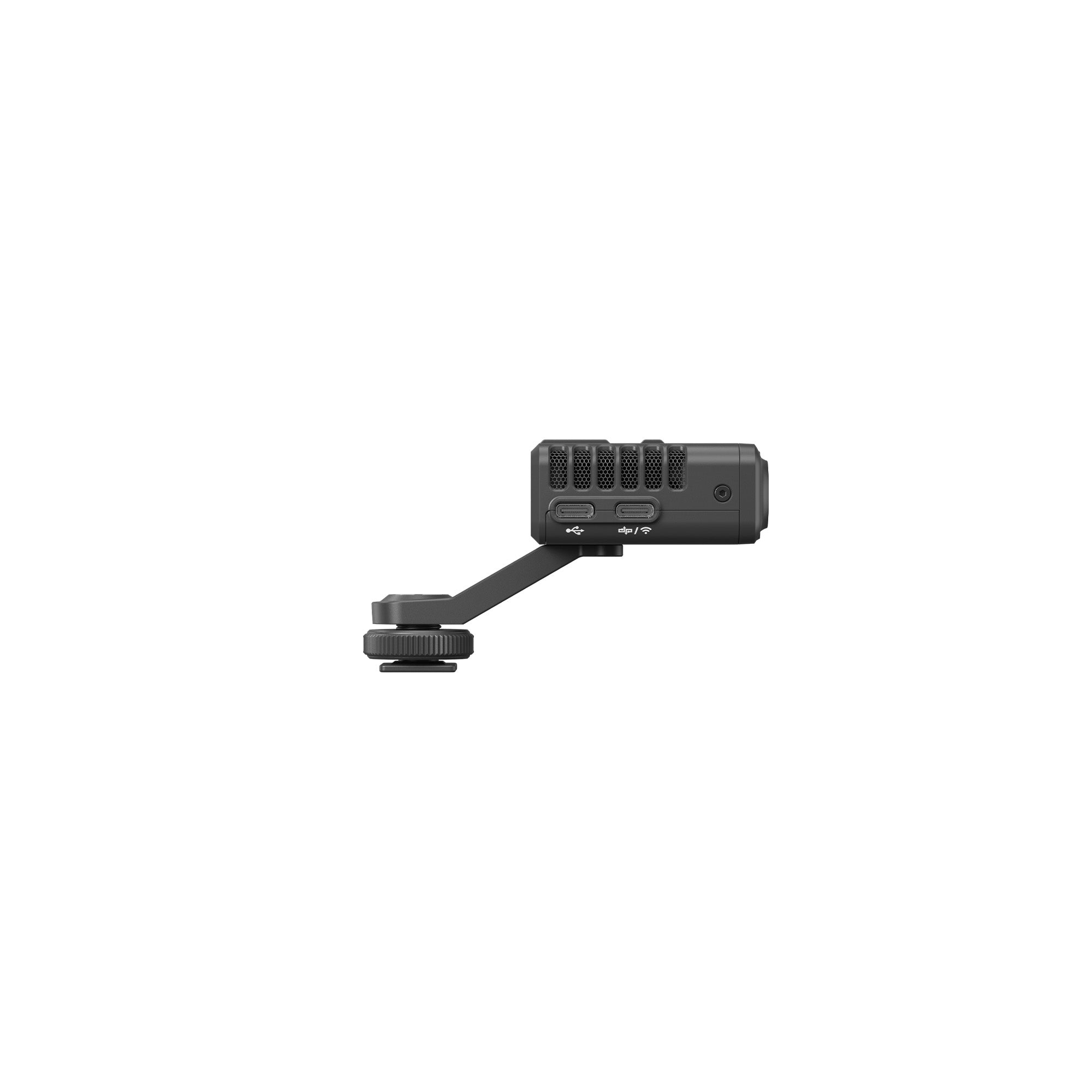

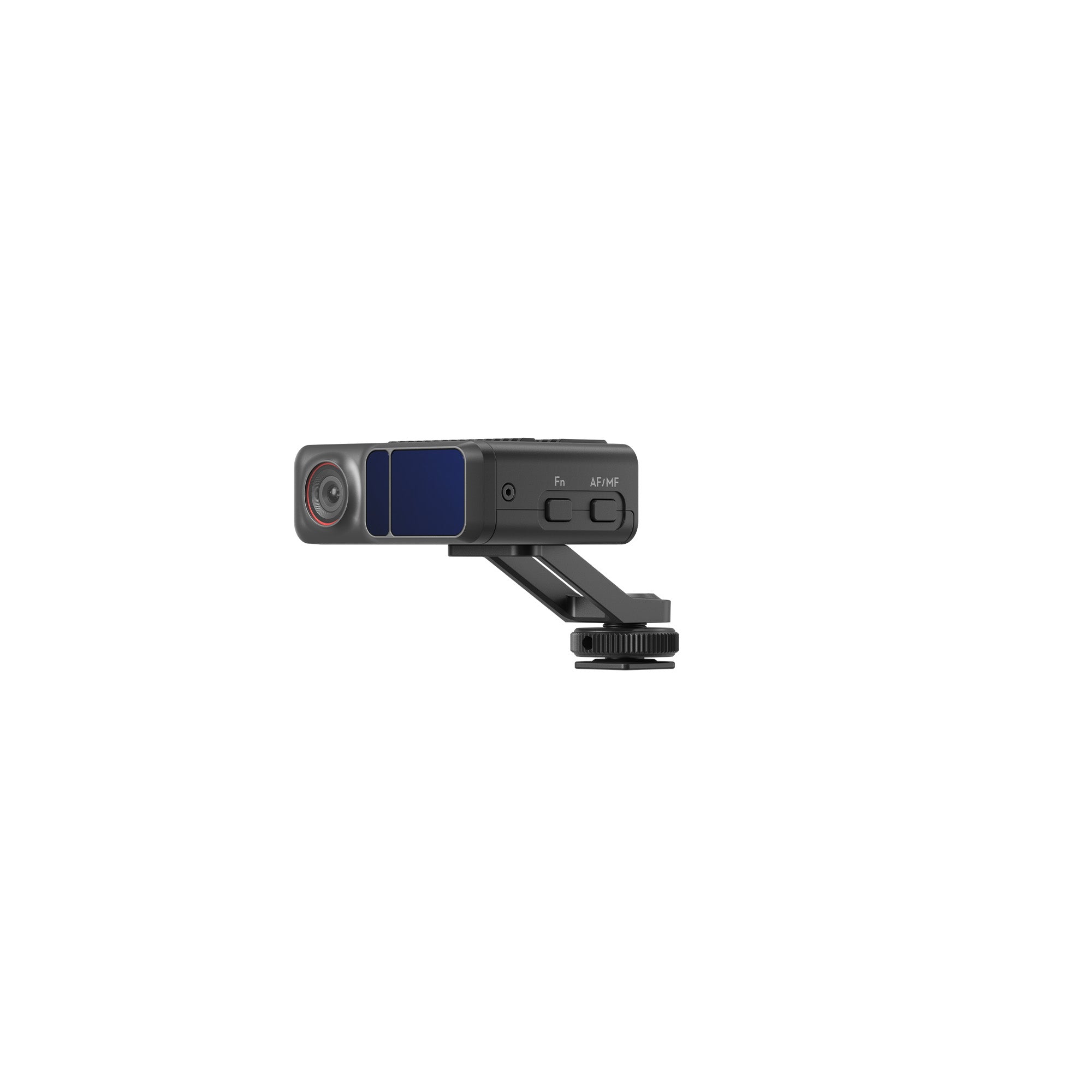

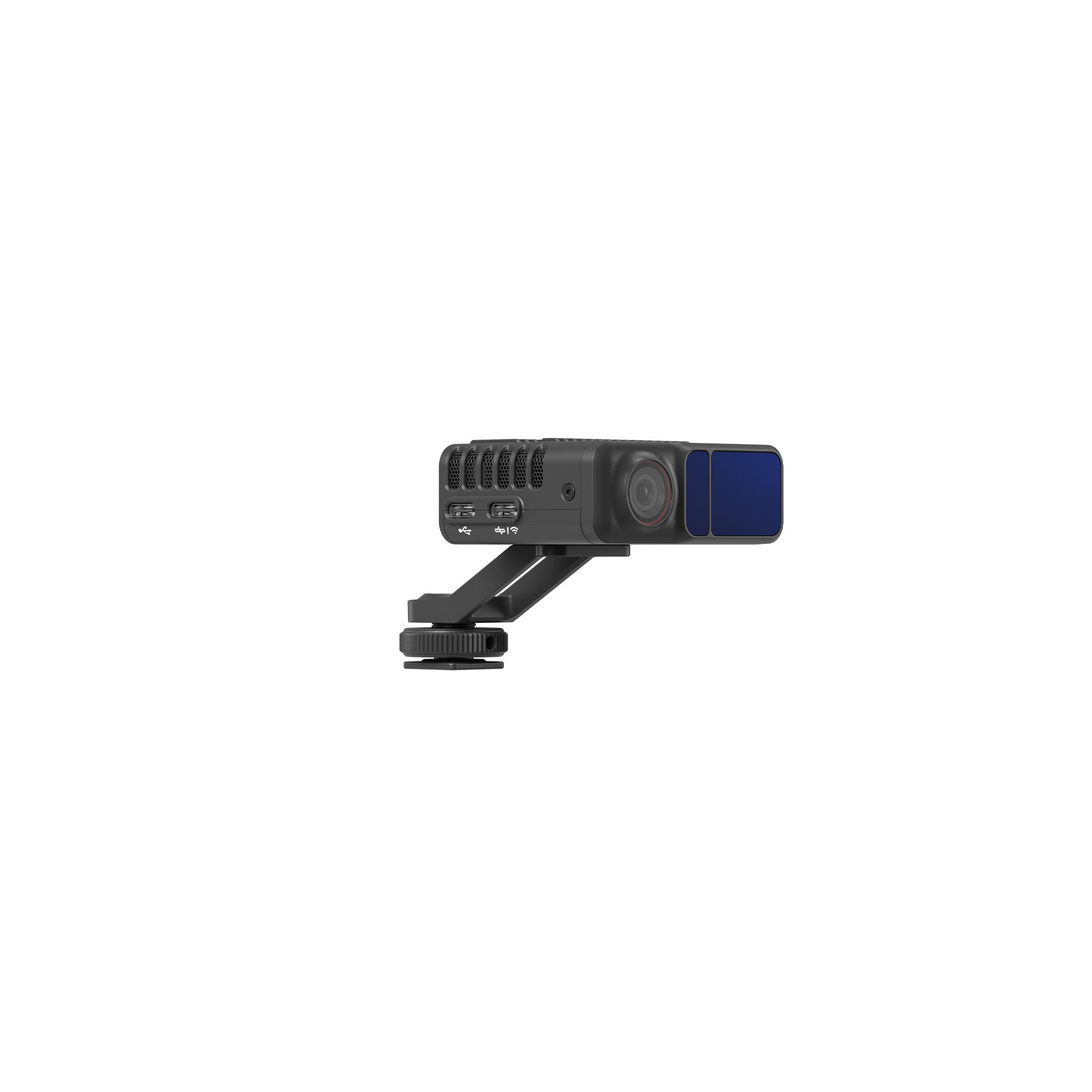

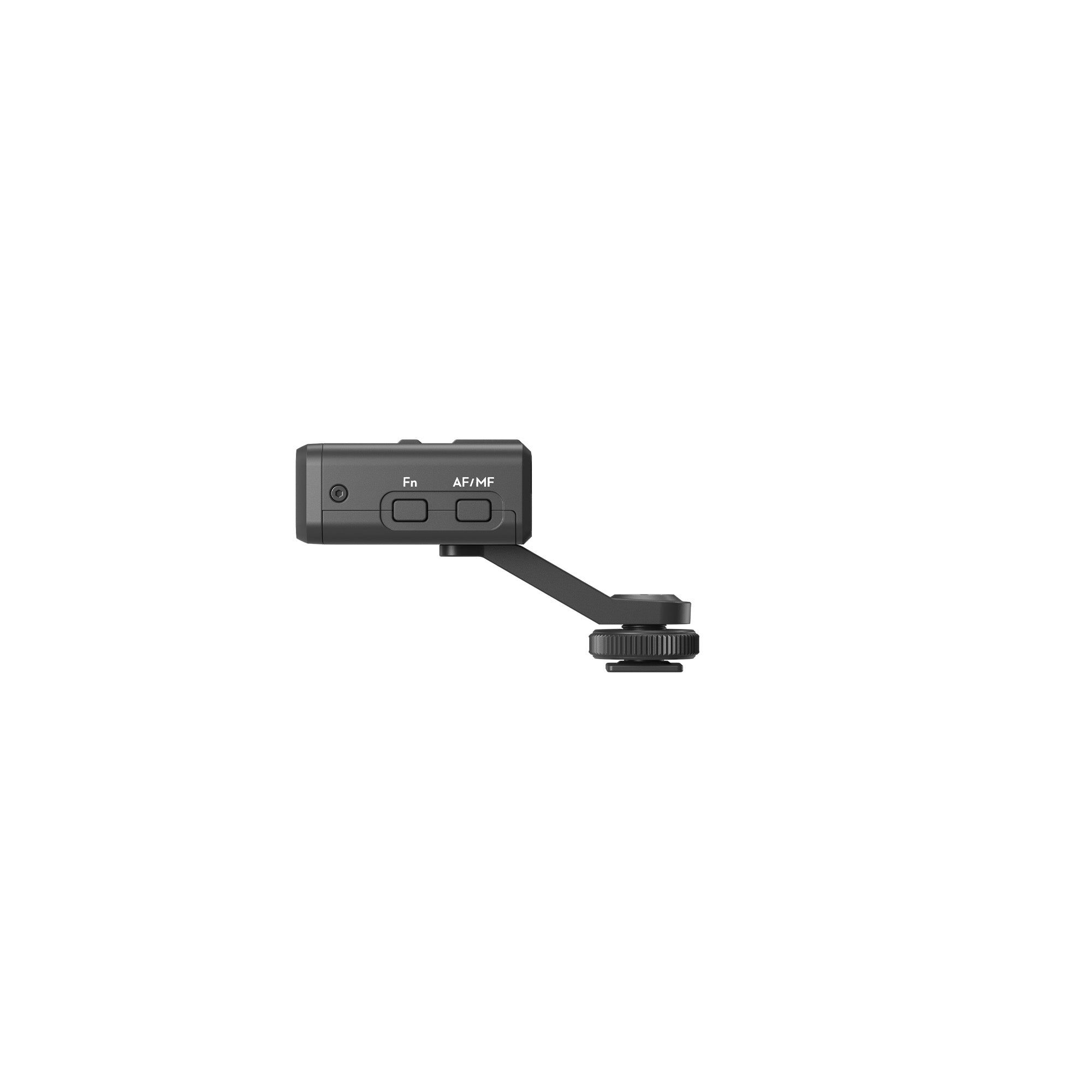

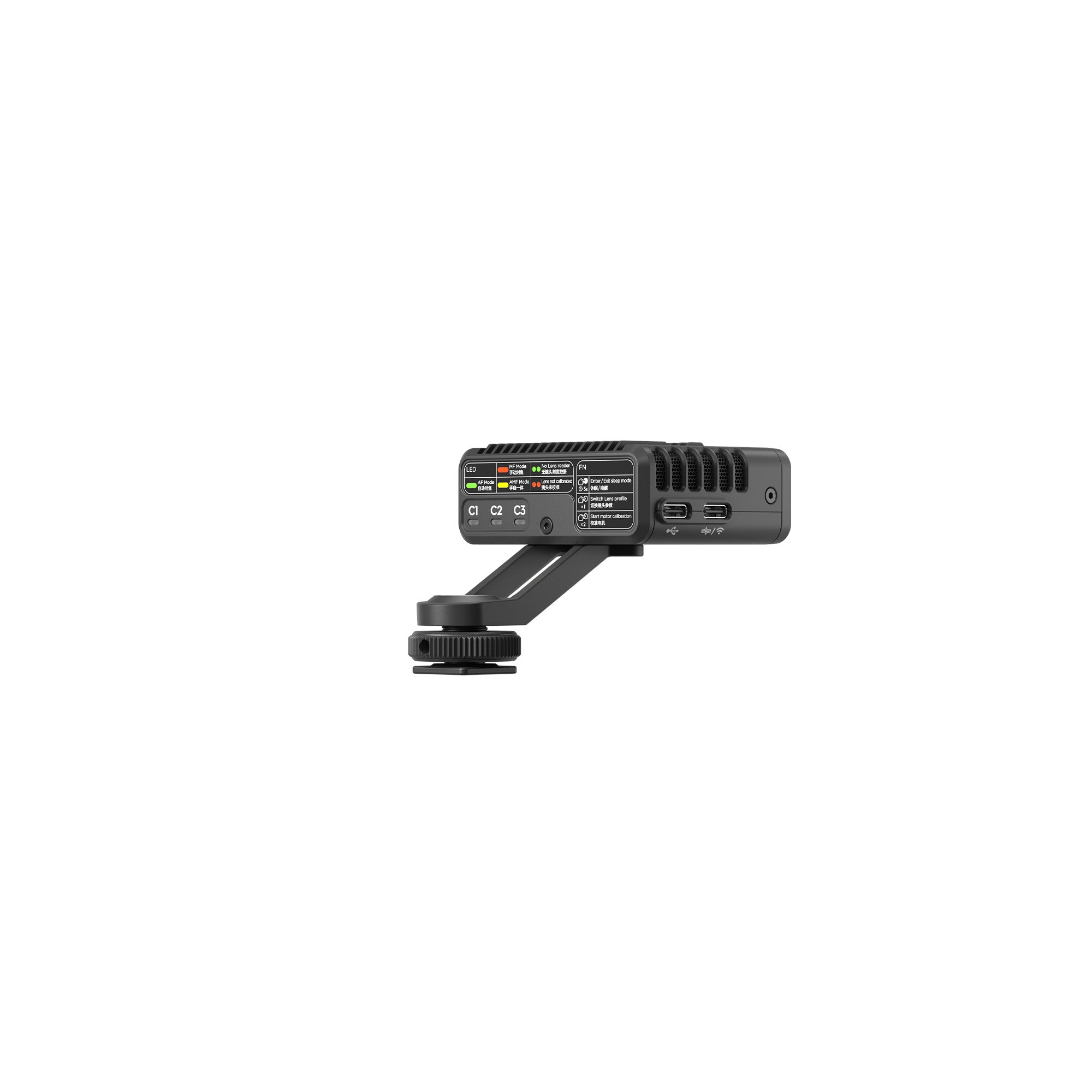

DJI Focus Pro LiDAR

The LiDAR offers 76,800 ranging points, an increase of 77% compared to the previous generation. This allows for improved human-subject edge detection and reduces focus hunting. With a maximum focus distance of 20 meters and a 70° field of view, the LiDAR is ideal for capturing edge compositions and close-up shots. Additionally, the LiDAR has a refresh rate of 30 Hz, enabling faster subject information collection and more accurate focusing on moving subjects. When combined with the DJI Focus Pro Motor, the LiDAR can even enable autofocus for calibrated manual lenses.

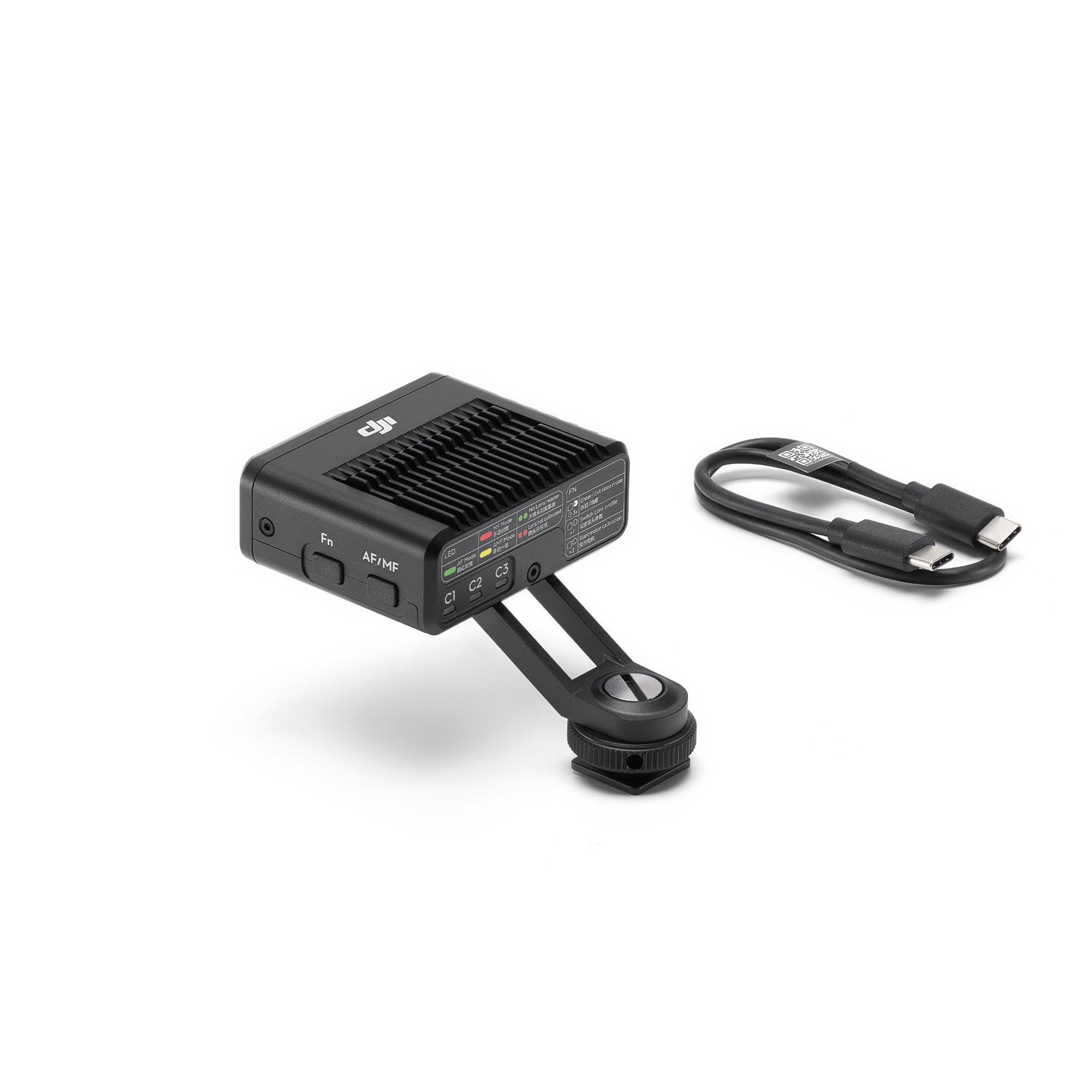

In The Box:

• Focus Pro LiDAR × 1

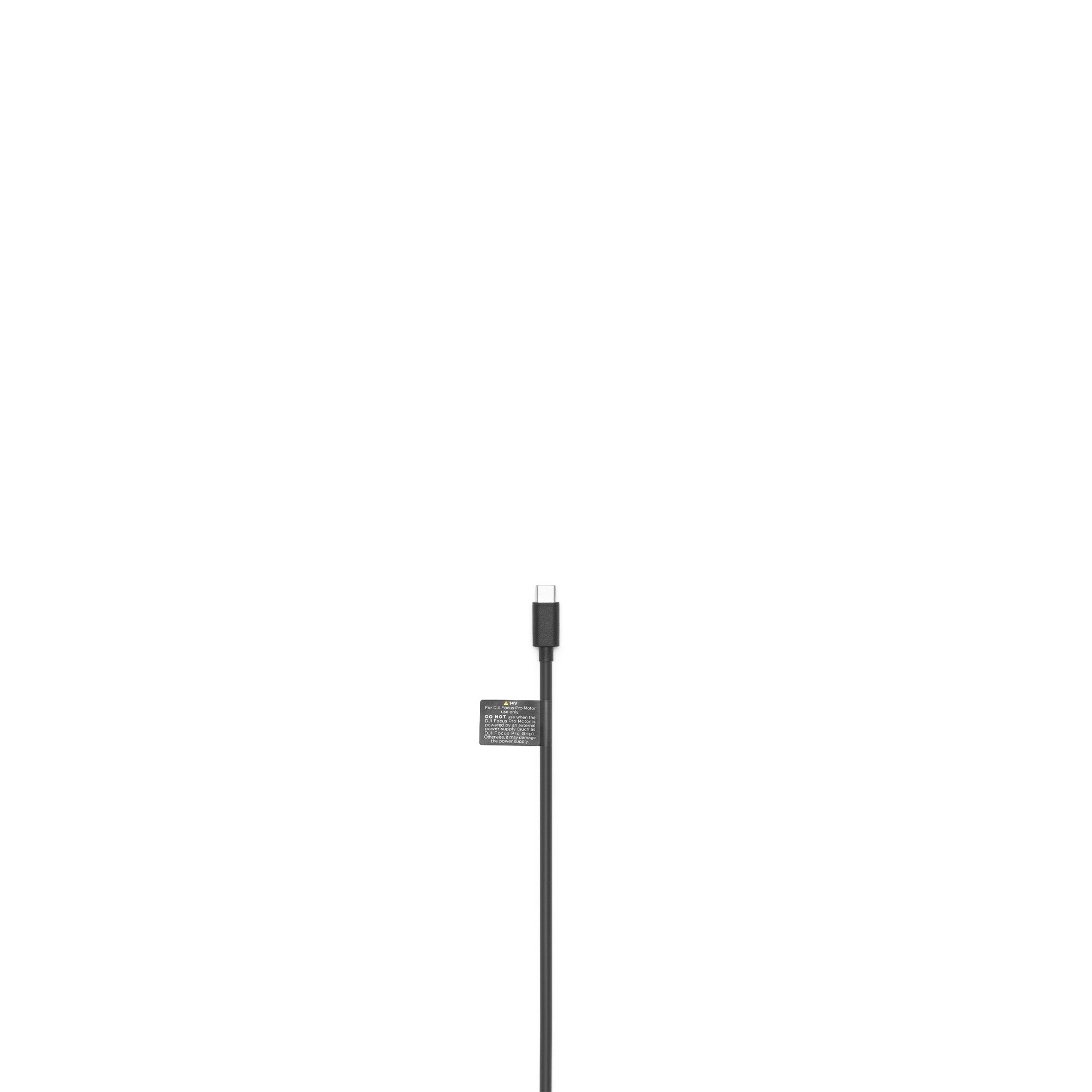

• Multi-Camera Control Cable (USB-C, 30 cm) × 1

Specifications:

• Ranging Points: 76,800
• Sensing Range: 0.5-20 m
• FOV:
• Wide-Angle Mode: 65° (horizontal), 40° (vertical), 76.1° (diagonal)
• Telephoto Mode: 20° (horizontal), 20° (vertical), 28.3° (diagonal)
• Frame Rate: 30fps
• Equivalent Focal Length: 30 mm (wide-angle mode)
• Ranging Accuracy: ±1% to 3% (affected by the distance)
• ‌Power Consumption: Average approx. 6.3 W, max 6.8 W
• Input Voltage: 6.6-17.2 V
• Operating Temperature: -20° to 45° C (-4° to 113° F)
• Main Body Dimensions: 68×25×57 mm (L×W×H)
• Weight: 140 g

Compatibility:

• DJI RS 4 Pro
• DJI RS 3 Pro
• DJI Focus Pro Grip
